Which is the design of external gear pump?
There are two basic designs of gear pump: internal and external (Figure 1). An internal gear pump has two interlocking gears of different sizes with one rotating inside the other. An external gear pump consists of two identical, interlocking gears supported by separate shafts.
What is the principle of gear pump?
The gear pump working principle is, it uses the gears actions otherwise rotating actions to move liquids. The rotating part extends the seal of liquid by the pump case to create suction at the inlet of the pump. Liquid drawn into the pump can be included in the rotating gears cavities and moved to the expulsion.
What is hydraulic gear pump?
A gear pump uses the meshing of gears to pump fluid by displacement. They are one of the most common types of pumps for hydraulic fluid power applications. The gear pump was invented around 1600 by Johannes Kepler. Gear pumps are also widely used in chemical installations to pump high viscosity fluids.

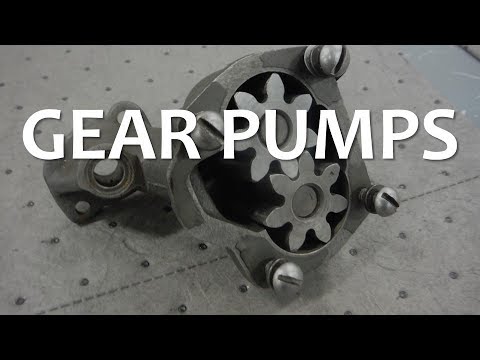

Which gears are used in external gear pump?
An internal gear pump has two interlocking gears of different sizes with one rotating inside the other. An external gear pump consists of two identical, interlocking gears supported by separate shafts. Generally, one gear is driven by a motor and this drives the other gear (the idler).
How many types of pump are there?
There are three basic types of pumps: positive-displacement, centrifugal and axial-flow pumps.
Which pump is more efficient?
Where different pump designs could be used, the centrifugal pump is generally the most economical followed by rotary and reciprocating pumps. Although, positive displacement pumps are generally more efficient than centrifugal pumps, the benefit of higher efficiency tends to be offset by increased maintenance costs.
What is pump Explain with neat sketch of gear pump?
Explain gear pump with neat sketch. Answer: It consists of one external and one internal meshing gear pair. External gear is connected to electric motor and hence is driving gear. Internal gear or ring gear is driven gear which rotates in same direction as that of external gear.
What is advantage of internal gear pump?
The internal gear pump is non-pulsing, self-priming, and can run dry for short periods. They're also bi-rotational, meaning that the same pump can be used to load and unload vessels. Because internal gear pumps have only two moving parts, they are reliable, simple to operate, and easy to maintain.
In which range of pressure gear pump is used?
Gear pumps generally work within the following ranges: Flow rate ranges between 1 and 1,500 gpm. Total head (pressure) ranges between 10 and 2,500 psi.
What is Rotary Lobe pump?
Rotary lobe pumps are positive-displacement type pumps that use two or more lobes rotating around parallel shafts in the pump's body to move liquids. They are widely used in the hygienic processing industries, including food & beverage processing and biopharmaceutical manufacturing.Mar 1, 2021
What is a gear pump and how it works?
- Internal gear pump As the gears come out of mesh on the inlet side of the pump, they create an expanded volume. ... The trapped fluid is moved from the inlet, to the discharge, around the casing. As the teeth of the gears become interlocked on the discharge side of the pump, the volume is reduced and the fluid is forced out under pressure.
What does gear pump mean?
- A Gear Pump is a type of pump that uses a network of gears to draw fluids by displacing them. This is a common kind of pump that is mostly used in the applications of hydraulic-fluid power.
What is internal gear pump?
- Internal Gear Pumps. Internal gear pumps are exceptionally versatile. While they are often used on thin liquids such as solvents and fuel oil, they excel at efficiently pumping thick liquids such as asphalt, chocolate, and adhesives. The useful viscosity range of an internal gear pump is from 1cPs to over 1,000,000cP.
How do gear pumps operate?
- A gear pump works on the principle of displacement. As the gears rotate inside the gear pump chamber, they create areas of low and high pressure. An area of low pressure, or vacuum, is created between the teeth of the gears when they un-mesh. Liquid flows into this area of lower pressure.
What are the characteristics of gear pumps?What are the characteristics of gear pumps?
Variable torque versus speed profile. A gear pump develops flow by carrying fluid between the teeth of two meshed gears. One gear is driven by the drive shaft and turns the other. The pumping chambers formed between the gear teeth are enclosed by the pump's housing and the side plates.
When was the gear pump invented?When was the gear pump invented?
The gear pump was invented around 1600 by Johannes Kepler. Gear pumps are also widely used in chemical installations to pump high viscosity fluids. There are two main variations: external gear pumps which use two external spur gears, and internal gear pumps which use an external and an internal spur gears...
What is the difference between gear pump and vane pump?What is the difference between gear pump and vane pump?
Gear pumps are less expensive but limited to pressures below 140 bar.It is noisy in operation than either vane or piston pumps. Gear pumps are invariably of fixed displacement type, which means that the amount of fluid displaced for each revolution of the drive shaft is theoretically constant.
What is a crescent internal gear pump?What is a crescent internal gear pump?
Internal gear ( Crescent Internal Gear) pump design for high viscosity fluids. An external precision gear pump is usually limited to a maximum working pressure of 210 bars (21,000 kPa) and a maximum speed of 3,000 rpm.
