What is variable vane pump?

Can vane pumps run dry?

Vane pumps have no internal metal-to-metal contact and self-compensate for wear, enabling them to maintain peak performance on these non-lubricating liquids. ... Sliding vane pumps can run dry for short periods of time and handle small amounts of vapor.

What is variable vane pump?

Variable displacement vane pumps (VDVPs) are used in a number of applications. In contrast to fixed-displacement pumps, they allow for an adjustment of the volume flow provided by the pump to different requirements in a hydraulic circuit, most prominently volume flow or pressure control.Aug 14, 2017

How does a variable vane pump work?

A variable-displacement pressure-compensated vane pump works quite differently from a piston pump. Instead of reciprocating pistons, the rotating group of a vane pump is exposed to suction and pressure chambers inside the housing. ... This reduces effective displacement, reducing flow to reduce downstream pressure.May 9, 2019

Is vane pump variable displacement?

One of the major advantages of the vane pump is that the design readily lends itself to become a variable-displacement pump, rather than a fixed-displacement pump such as a spur-gear (X-X) or a gerotor (I-X) pump.

How does a variable hydraulic pump work?

The variable displacement pump converts mechanical energy(rotation of motor or engine) to hydraulic energy. ... That is, conversion from hydraulic energy to mechanical energy(the function of the hydraulic motor). The flow rate and outlet pressure of the variable displacement pump can be changed during its operation.May 4, 2019

What is hydraulic vane pump?

Vane pumps are hydraulic pumps that operate at very low noise levels. Hydraulic vane pumps operate with much lower flow pulsation, i.e. constant flow. As such, vane pumps produce less noise while maintaining a relatively high speed of up to 3,000 rpm.

What is the difference between vane pump and gear pump?

Since the gears are rigid, the pumps create a smooth, pulse-free flow, but also one that can handle very high pumping pressures, especially those needed when transferring high-viscosity liquids. Sliding vane pumps feature a rotor with vanes that slide into and out of it as the rotor turns.

What are screw pumps used for?

A screw pump, also known as a water screw, is a positive-displacement (PD) pump that use one or several screws to move fluid solids or liquids along the screw(s) axis.

What are the advantages of variable displacement pump?

Match power to load: A key advantage of variable-displacement pumps is that output (flow to the actuator) changes to match application requirements. If you want the hydraulic motor to operate at a specific speed, the pump will deliver the flow required.Jul 10, 2009

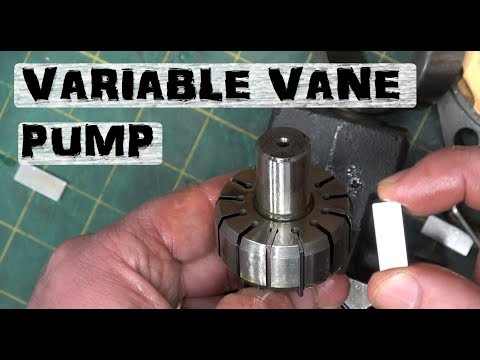

image-What is variable vane pump?

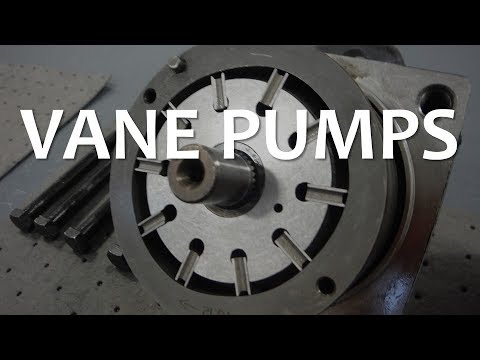

image-What is variable vane pump?

What is a difference between vane pump and radial piston pump?

Hydraulic vane pumps are used in die casting, injection moulding machines industry plus land and road construction machinery. Piston pumps handle large flows at high hydraulic system pressures delivering optimum efficiency and reliability while maintaining a compact size with a high power density.Apr 27, 2019


What is the efficiency of vane pump?

The vane pump volumetric efficiency at 1200 rpm decreases from 97.3% at 500 psi to 84% at 2500 psi. While the hydraulic gerotor pump volumetric efficiency decreased from 91.5 to 78% at the same speed and pressure. The vane pump volumetric efficiency is 5% higher than the gerotor pump.Oct 31, 2012


What is unbalanced vane pump?

Unbalanced vane pumps are the regular vane pump that you have read in this article. It consists of a cylindrical rotor mounted on an offset inside a circular casing. ... A side thrust is made on the rotor shaft due to the difference in pressure between the inlet and outlet port.


What is a variable displacement vane pump?

  • Variable Displacement Pumps. Variable displacement pumps, on the other hand, can change displacement while continuing to turn at the same RPMs. The most common variable displacement pumps are piston pumps. There are also some types of vane pumps, called unbalanced vane pumps, that are variable displacement as well.


What is a balanced vane pump?

  • In the balanced vane pump, it consists of two intake ports and two outlet ports and they are diametrically opposite to each other. And also in the balanced vane pump an elliptical housing is used in balanced vane pump rather than cam ring that is used in unbalanced vane pump.


What is variable frequency pump?

  • A variable frequency drive is used for adjusting a flow or pressure to the actual demand. It controls the frequency of the electrical power supplied to a pump or a fan. Significant power savings can be achieved when using a VFD.


What is variable piston pump?

  • A variable-displacement axial-piston pump enables high pressure, high horsepower precision control in a compact package. In an axial-piston pump, the pistons and cylinder rotate around the center, longitudinal axis.
