What is pressure on an airfoil?

Where is the high pressure on an airfoil?

The air pressure on the bottom of the airfoil is higher than on top. When air passes both above and below the airfoil, the air on top moves faster because of the curve, causing it to have a lower air pressure.Apr 18, 2013

What affects pressure distribution over an airfoil?

According to Bernoulli's Principle, this pressure difference is a result of differences in velocity between the upper and lower regions of the airfoil, which are caused by air molecules interacting with the curved surfaces.

What is meant by static pressure?

Definition of static pressure

: the force per unit area that is exerted by a fluid upon a surface at rest relative to the fluid.

Is static pressure the same as atmospheric pressure?

Atmospheric pressure is the total pressure of the air including static pressure and also dynamic/velocity pressure, or the pressure caused by air moving. Therefore, atmospheric pressure is the sum of the dynamic and static pressure.Dec 29, 2016

What are the effects of stall on an airfoil?

This angle varies very little in response to the cross section of the (clean) aerofoil and is typically around 15°. At the stall, the airflow across the upper cambered surface ceases to flow smoothly and in contact with the upper surface and becomes turbulent, thus greatly reducing lift and increasing drag.

How do you calculate pressure from lift coefficient?

I analysed a wing using euler as well as N-S models. I used Spalart Allmaras model for viscous flow. The main problem I am facing is a very high value of coefficient of lift and a very low value of coefficient of drag.Nov 18, 2018

What is negative pressure on an airfoil?

Pressure Distribution

This negative pressure on the upper surface creates a relatively larger force on the wing than is caused by the positive pressure resulting from the air striking the lower wing surface. Figure 4-7 shows the pressure distribution along an airfoil at three different angles of attack.

Why is there low pressure above an airfoil?

"When the air is bent around the top of the wing, it pulls on the air above it accelerating that air down, otherwise there would be voids in the air left above the wing. Air is pulled from above to prevent voids. This pulling causes the pressure to become lower above the wing."Jan 18, 2013

What explains the low pressure on the upper surface of an airfoil?

In order to meet up at the trailing edge, the molecules going over the top of the wing must travel faster than the molecules moving under the wing. Because the upper flow is faster, then, from Bernoulli's equation, the pressure is lower. The difference in pressure across the airfoil produces the lift.

image-What is pressure on an airfoil?

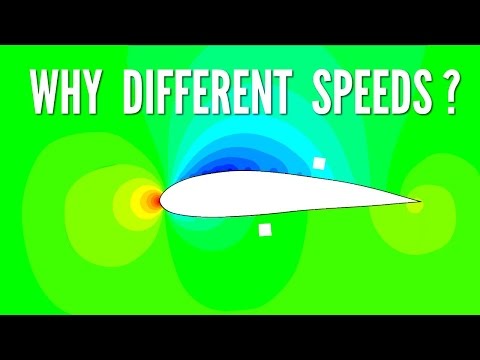

image-What is pressure on an airfoil?

How does pressure change with angle?

For a conventionally cambered airfoil, the center of pressure lies a little behind the quarter-chord point at maximum lift coefficient (large angle of attack), but as lift coefficient reduces (angle of attack reduces) the center of pressure moves toward the rear.Nov 25, 2016


Why does Centre of pressure move forward?

As the forward part of the airfoil generates most of the lift force. The curve of pressure distribution at the upper surface of the forward part of airfoil is “higher” when the angle of attack is increased. Thus, the center of pressure moves forward up until the stall.


What does a higher pressure coefficient mean?

Also, the familiar relationship that stagnation pressure is equal to total pressure does not always hold true. ... As a result, pressure coefficients can be greater than one in compressible flow. greater than one indicates the freestream flow is compressible.
