What is linear convolution formula?

What is a linear convolution?

Linear convolution is the basic operation to calculate the output for any linear time invariant system given its input and its impulse response. Circular convolution is the same thing but considering that the support of the signal is periodic (as in a circle, hence the name).

What are the application of linear convolution?

Convolution has applications that include probability, statistics, acoustics, spectroscopy, signal processing and image processing, geophysics, engineering, physics, computer vision and differential equations.

What is Z transform in DSP?

In mathematics and signal processing, the Z-transform converts a discrete-time signal, which is a sequence of real or complex numbers, into a complex frequency-domain representation. It can be considered as a discrete-time equivalent of the Laplace transform.

What is linear convolution in signal and system?

Linear convolution is a mathematical operation done to calculate the output of any Linear-Time Invariant (LTI) system given its input and impulse response. ... Here, y(n) is the output (also known as convolution sum). x(n) is the input signal, and h(n) is the impulse response of the LTI system.Dec 1, 2019

Why linear convolution is important in DSP?

Convolution is a mathematical way of combining two signals to form a third signal. It is the single most important technique in Digital Signal Processing. ... Convolution is important because it relates the three signals of interest: the input signal, the output signal, and the impulse response.

Which is better linear or circular convolution?

Circular convolution utilises the periodicity of samples in DFT and hence gives the result efficiently. But as we require the output we get by linear convolution, we padd the input or impulse response whatever is short with zeros called zero padding.

Which instruction is used for linear convolution?

In implementing discrete-time LSI systems, we need to compute the convolution sum, otherwise called linear convolution, of the input signal x[n] and the impulse response h[n] of the system. For finite duration sequences, this convolution can be carried out using DFT computation. Let x[n] and h[n] be of finite duration.

Why does CNN use convolution?

The main special technique in CNNs is convolution, where a filter slides over the input and merges the input value + the filter value on the feature map. In the end, our goal is to feed new images to our CNN so it can give a probability for the object it thinks it sees or describe an image with text.Apr 24, 2018

What is the difference between convolution and multiplication?

What is the difference between convolution and multiplication? d) Convolution is a multiplication of added signals. ... But multiplication does. It keeps the signal intact while superimposing it.

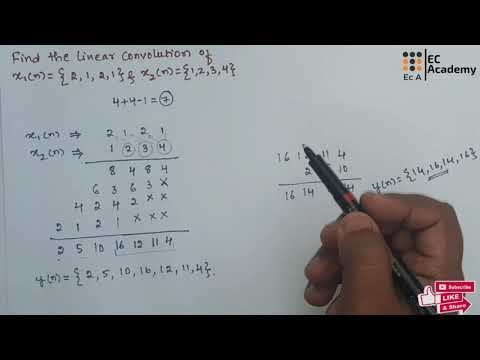

image-What is linear convolution formula?

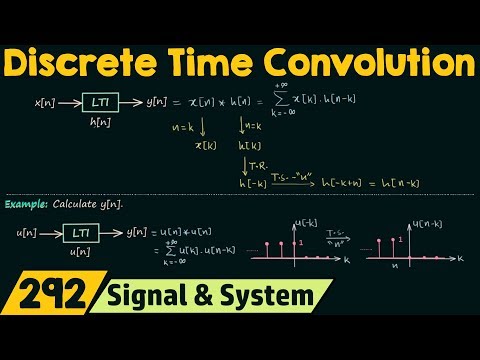

image-What is linear convolution formula?

What is FIR filter in DSP?

In signal processing, a finite impulse response (FIR) filter is a filter whose impulse response (or response to any finite length input) is of finite duration, because it settles to zero in finite time. ... FIR filters can be discrete-time or continuous-time, and digital or analog.


What are the applications of convolution?

  • Generalizations of convolution have applications in the field of numerical analysis and numerical linear algebra, and in the design and implementation of finite impulse response filters in signal processing. Computing the inverse of the convolution operation is known as deconvolution.


How do convolution and correlation differ?

  • Convolution Vs Correlation HISTORY. ... THE MISNOMER: The Convolutional operation widely used in CNN is a misnomer. ... Cross-Correlation: Correlation is the process of moving a filter mask often referred to as kernel over the image and computing the sum of products at each location. More items...


Is the equation linear or nonlinear?

  • While a linear equation has one basic form, nonlinear equations can take many different forms. The easiest way to determine whether an equation is nonlinear is to focus on the term “nonlinear” itself. Literally, it’s not linear.


What is the significance of convolution?

  • A convolution is an integral that expresses the amount of overlap of one function as it is shifted over another function . It therefore "blends" one function with another. For example, in synthesis imaging, the measured dirty map is a convolution of the "true" CLEAN map with the dirty beam (the Fourier transform of the sampling distribution).
