What is inside a powerline transformer?

Transformer facilitates the delivery of power electric energy at minimum power loss. The basic parts of a transformer are core, the primary winding and secondary winding. Apart from these, there are various other components such as insulation, transformer oil, cooling arrangements, protection relays, enclosure etc present in larger transformers.

What is the function of power transformer?

The Power transformer is one type of transformer that is used to transmit electrical energy in any component of the electronic or electrical circuit between the distribution primary circuits and the generator. These transformers are utilized in distribution networks to interface step down and step up voltages.May 19, 2021

What material is inside a transformer?

In most types of transformer construction, the central iron core is constructed from of a highly permeable material commonly made from thin silicon steel laminations. These thin laminations are assembled together to provide the required magnetic path with the minimum of magnetic losses.

What fluid is in a transformer?

Most power transformers are filled with mineral oil refined to achieve the desired electrical and chemical properties. Some transformers, particularly indoor units, are filled with a synthetic fluid, such as silicon, R-temp, or Askarel (PCB fluid).Nov 1, 1999

What are the 2 types of transformers?

There are two types of potential transformers; the conventional wound type (or electromagnetic type) and the capacitor voltage (potential) transformer. For voltages exceeding 100 kV (phase) the conventional type of potential transformer becomes extremely expensive owing to the insulation requirements.

What's a step-up transformer?

A transformer that increases the voltage from primary to secondary (more secondary winding turns than primary winding turns) is called a step-up transformer. ... As a step-down unit, this transformer converts high-voltage, low-current power into low-voltage, high-current power.

What is difference between power transformer and distribution transformer?

Power transformers are utilized in transmission networks with significantly higher voltage, while distribution transformers function in distribution networks defined by lower voltages. ... Whereas distribution transformers ratings range from 11kV, 6.6kV, 3.3kV, 440v, and 230 volts.Feb 12, 2020

How do CT and PT work?

CT is used to measure current while PT is used to measure voltage. CT is connected in series while PT is connected in parallel. CT ratio range is from 1 to 5A while the PT range is from 110V. We connect the output parameter from CT to the ampere meter while we connect the PT output to the voltmeter.May 27, 2021

What is the components of the power system?

Major components of a power system are- synchronous generators, synchronising equipment, circuit breakers, isolators, earthing switches, bus-bars, transformers, transmission lines, current transformers, potential transformers, relay and protection equipment, lightning arresters, station transformer, motors for driving ...

What are the components of a transformer?

  • The principal parts of a transformer are two coils of wire, called the primary winding and the secondary winding, wound on some type of core material. An enclosure protects the internal components from dirt, moisture, and mechanical damage.

image-What is inside a powerline transformer?
image-What is inside a powerline transformer?

What are the two types of Transformers?

  • Transformers can be classified on different basis, like types of construction, types of cooling etc. (A) On the basis of construction, transformers can be classified into two types as; (i) Core type transformer and (ii) Shell type transformer, which are described below.


What is an AC power transformer?

  • AC power transformers. AC power transformers are one of the keys to allowing widespread distribution of electric power as we see it today. Transformers efficiently convert electricity to higher voltage for long distance transmission and back down to low voltages suitable for customer usage.


What is transformer made of?

  • Basically, Transformer is made up of one core and 2 coils. The core may have the material like silicon steel or other material which has higher permeability. and the windings are mostly made up of copper material.

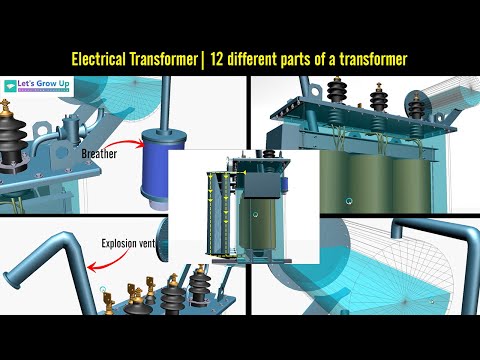

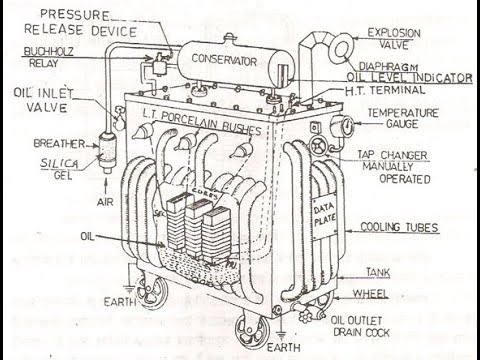

What are the different parts of a transformer?What are the different parts of a transformer?

Parts of a transformer. 1 1. Core. The core provides a low reluctance path for electromagnetic flux and supports the primary and secondary windings. It is made by stacking thin ... 2 2. Winding. 3 3. Insulation. 4 4. Tank. 5 5. Terminal and bushings. More items


What is the main tank of a transformer used for?What is the main tank of a transformer used for?

The main tank is a part of a transformer serves two purposes: Protects the core and the windings from the external environment. Serves as a container for oil and support for all other transformer accessories. Tank bodies are made by fabricating rolled steel plates to containers.


What are the most important parts of power transformers in India?What are the most important parts of power transformers in India?

Listed below are some of the most important parts of power transformers in India. The most important part of a transformer, the steel tank is cylindrical or cubical, and holds the core, windings and other important devices of the transformer.


Why is the core of a transformer laminated?Why is the core of a transformer laminated?

The core is laminated in order to reduce the core losses in a transformer. The core is generally made up of Cold Rolled Grain Oriented (CRGO) steel material. The other function of the laminated core is to allow the set up of magnetic flux in the transformer by providing a low reluctance path and thus helps in flux linkage with the windings. 2.
