What is a gate in injection Moulding?

Diaphragm gates are used for cylindrical-shaped parts that are normally open on either end. They are used in three plate cold runner, hot runner, or single-cavity sprue gated molds. Diaphragm gates are generally used when concentricity is an important dimensional requirement.

What is sprue and gate?

The sprue is a large-diameter channel through which plastic flows, usually around the edges of the part or along straight lines. ... The gate is the location at which the molten plastic enters the mold cavity and is often evidenced by a small nub or projection (the "gate mark") on the molded piece.

What is a submarine gate?

An angled, conically shaped tunnel gate, also known as a subgate or submarine gate, is one of the best—and worst—types of gating methods. One of the reasons it's the best is because a tunnel gate automatically separates or degates from the part when either the mold opens or when the parts and runner are ejected.Jan 2, 2018

What is gate vestige?

Vestige refers to any extra material extending from a molded part at the area of the gate after gate runner removal (such as by an automatically trimmed gate). Vestiges generally require manual removal.

What is a cashew gate?

Cashew gates, or banana gates, are sub-gates that are automatically de-gated and can be placed in hidden areas that do not interfere with a part's surface appearance requirements.Apr 6, 2020

What is runner and gate?

From the molding nozzle the sprue leads into the runner, which then directs the melt into the mold cavity through the gate. ... At the end of the runner is the gate leading into the mold cavity. The gate leaves a surface blemish on the part. It is small and designed to freeze before the part, runner, or sprue freeze.Oct 25, 2021

What sprue means?

Definition of sprue

(Entry 1 of 2) 1 : the waste piece on a casting (as of metal or plastic) left by the hole through which the mold was filled. 2 : the hole in which a sprue forms. sprue. noun (2)

Why is sprue bush important?

Sprue Bushings Information. Sprue bushings are hardened-steel mold components that accept an extrusion nozzle and provide the opening used to transfer molten plastic to the mold cavity. ... Rigidity is important since the sprue is often the point at which pickers or other industrial robots grasp molded parts for removal.

What is banana gate?

A scandal of the 1970s involving bribes to the Honduran president to reduce the export tax on bananas. It provoked the overthrow of Honduras' military government.

Which type of gate is used in hot runner?

The hot tip gate is a gate style exclusively used with a hot runner system: an injection molding setup with a heated nozzle. A hot tip gate is usually found at the top of a part instead of the parting line; it leaves a small nub on the surface.Feb 24, 2021

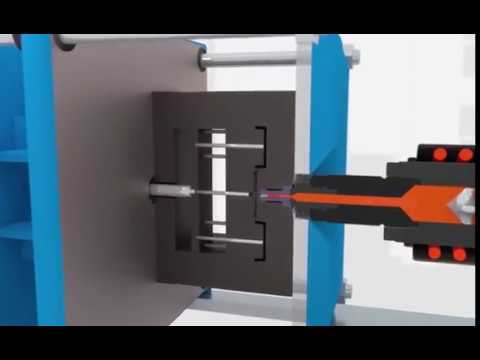

image-What is a gate in injection Moulding?

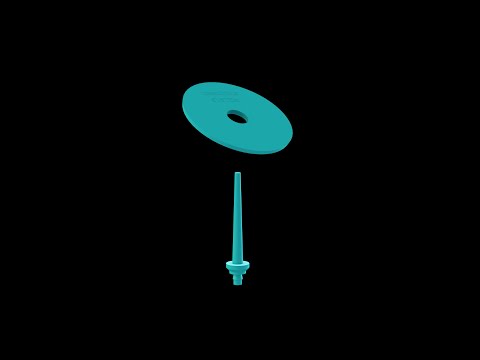

image-What is a gate in injection Moulding?

What is a tunnel gate?

Tunnel gates, also known as pin or post gates, deliver resin to the mold cavity. They are machined at an angle and below the parting line. ... Gates are the connections where the runners—the system that delivers the resin to the mold—meet the mold cavity.May 23, 2019


What is a hot tip gate?

A hot tip gate has a small circular gate opening in the “A” side of the mold that lets plastic into the cavity. It's called a hot tip gate because there is a thermostatically-controlled heater bolted to the back of the mold to keep the resin hot enough (and thus fluid enough) to pass through the small gate hole.Nov 16, 2007


What is gate blush?

What's known in the plastic injection molding business as “gate blush” or simply “blush” is a cloudy or hazy discoloration of the plastic on a finished part. ... Not only is the defect in color and gloss visually unappealing, the plastic in that area can be weaker than in the rest of the part.Sep 19, 2017


What is runner in mold?

A runner is a channel cut into the mold that allows plastic material to flow from the nozzle to the cavity. A change in pressure is expected whenever the viscosity changes or the flow channel thickness (or diameter) changes. Pressure will increase when you have a reduced thickness.
