What are the requirements of ECDIS?
ECDIS requirements
| Ship Type | Gross Tonnage | New Ships(Keel laying date) |
| Passenger Ships | Greater than 500 | July 1, 2012 |
| Tankers | Greater than 3,000 | July 1, 2012 |
| Others | Greater than 50,000 | July 1, 2013 |
| Greater than 20,000 but less than 50,000 | July 1, 2013 |
What are the 3 mandatory sensors of ECDIS?

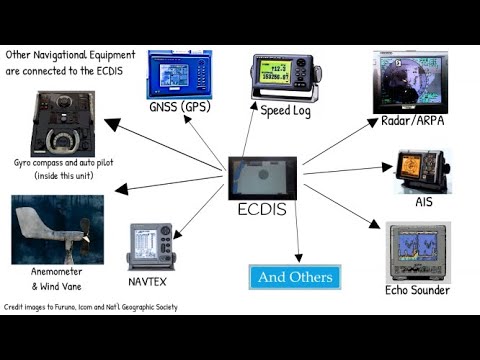

Guidance (1) General: (i) ECDIS shall be supplied by an emergency source of electrical power; (ii) ECDIS is required to connect to Radar (video and ARPA information) and AIS as well as gyro compass, speed log and GPS receiver. This requirement is recommended to ECDIS for existing ships as far as practicable.
What are ECDIS backup requirements?
For ships using ECDIS as their primary means of navigation, additional and independent ECDIS shall be provided as a back-up. The back-up ECDIS should be connected to a separate power supply and connected to systems providing continuous Position-fixing capability.Oct 23, 2020
What are the 5 ECDIS mandatory alarms?
The five mandatory alarms (as per IMO ECDIS Performance standards) are: crossing safety contour, deviation from route, positioning system failure, approach to critical point and different geodetic datum.Sep 3, 2018
What are the 4 stages of voyage planning?
There are four stages of Voyage Planning that are, Appraisal, Planning, Execution and Monitoring that logically follow each other.Jan 21, 2019
What is standard display in ECDIS?
4 Standard Display means the SENC information that should be shown when a chart is first displayed on ECDIS. Depending upon the needs of the mariner, the level of the information it provides for route planning or route monitoring may be modified by the mariner.
What does a raster chart look like?
Raster charts are digital or paper images of traditional nautical charts created by cartographers. The electronic image comprises rows of color pixels, or dots of ink, which form the symbols, lines, and tints that compose a chart.Jan 26, 2020
How many types are there in ECDIS training?
There are now over 30 manufacturers turning out nearly 100 different types of ECDIS for use by the mariner and while this makes for a variety of systems available on the market to drive competition, it creates headaches for shipping companies due to the necessity to provide 'type' training to their bridge teams in the ...
What is ECDIS route planning and monitoring?
During route planning, an indication will be made if the route is planned to cross the ship's safety contour. At the time of route monitoring, ECDIS should give an alarm if, within a specified time set by the navigator, own ship is likely to cross the safety contour.Nov 1, 2018
Why is ECDIS anti grounding tool?
Anti-grounding function
The final layer of safety is the anti- grounding function. This tool allows the ECDIS to scan ahead of the ship to a distance set by the user. It acts as a final layer of safety should a navigational danger be missed by the visual check or route scan.
Related questions
Related
What is deep contour?
Deep Contour: Indicates the limit of sea area where shallow water effects occur that can affect a vessel. It should be estimated twice or four times the draught of vessel (depending on the depth of water available)Jul 26, 2018
Related
What is safety contour in ECDIS?
The safety contour is the most important parameter of all the safety settings for the display of unsafe water areas, detecting isolated dangers and triggering anti-grounding alarms. The safety contour is basically an outline which marks the division between safe and unsafe waters.Oct 21, 2021
Related
What are the ECDIS carriage requirements for ships?
- ECDIS carriage requirements. The amended SOLAS regulation V/19 requires all newly built passenger ships of 500 gross tonnage and upwards, as well as newly built cargo ships of 3,000 gross tonnage and upwards engaged on international voyages to be fitted with ECDIS.
Related
What are the display requirements for ECDIS?
- DISPLAY REQUIREMENTS ECDIS should be capable of displaying information for: 1 route planning and supplementary navigation tasks; The effective size of the chart presentation for route monitoring should be at least 270. mm by 270 mm. The display should be capable of meeting colour and resolution recommendations of. IHO.
Related
Is ECDIS required to comply with SOLAS requirements?
- If a vessel requires flexibility in using either paper charts or ECDIS as the means of navigation, such an arrangement must be clearly indicated on Form E. In such cases, both paper charts and ECDIS must comply with SOLAS requirements. Home Tanker Notes Container Ship Operations Safety Navigation Ship Charterparties SEEMP Measures Voyage
Related
What are the requirements for back-up arrangements for ECDIS?
- Back-up Arrangements for ECDIS Appendix 6 to IMO Resolution MSC.232(82) specifies the requirements for adequate, independent back-up arrangements. The main requirements are to enable a timely transfer to the back-up system during critical navigation situations and allow the vessel to be navigated safely until the termination of the voyage.
Related
What are the display requirements for ECDIS?What are the display requirements for ECDIS?
DISPLAY REQUIREMENTS ECDIS should be capable of displaying information for: 1 route planning and supplementary navigation tasks; The effective size of the chart presentation for route monitoring should be at least 270. mm by 270 mm. The display should be capable of meeting colour and resolution recommendations of. IHO.
Related
What makes a good ECDIS system?What makes a good ECDIS system?
Straightforward and reliable software updates are a necessity. An ECDIS should be able to continuously plot the ships position and execute all route planning, monitoring and positioning that paper charts perform. Electronic navigation charts and the system utilizing them should have the same visual availability as paper charts.
Related
Is ECDIS required to comply with SOLAS requirements?Is ECDIS required to comply with SOLAS requirements?
If a vessel requires flexibility in using either paper charts or ECDIS as the means of navigation, such an arrangement must be clearly indicated on Form E. In such cases, both paper charts and ECDIS must comply with SOLAS requirements. Home Tanker Notes Container Ship Operations Safety Navigation Ship Charterparties SEEMP Measures Voyage
Related
What does ECDIS stand for?What does ECDIS stand for?
The advent of electronic charts in the 1990s provided ships with additional information, including real time information which could be displayed on screens on Electronic Chart Display and Information Systems (ECDIS). IMO adopted performance standards for electronic charts in the 1990s.
