How is 3phase distributed?

Three-phase power can be defined as the common method of alternating current power generation, transmission, and distribution. It is a type of polyphase system and is the most common method used by electric grids worldwide to transfer power.

A three-phase power circuit, also referred to as a polyphase (more than one phase) circuit, provides more power for the same current than would a single-phase circuit. Three-phase circuits are used in power distribution systems for the following reasons; Higher power transmission for the same electric current

How do you distribute a 3 phase load?

Abstract: In three phase distribution system the unbalance phenomenon occurs due to single-phase loads and unequal sharing of loads in each phase. To overcome this problem, distribution systems require equal sharing of load in each phase. This is possible by automatic three phase load balancing technique.

Why is the power distribution network in 3 phase?

The electric grid uses a three-phase power distribution system because it allows for higher transmission at lower amperage. This makes it possible to use higher gauge (thinner) copper wire, significantly reducing both material and labor costs.Jan 25, 2018

How does a 3 phase electrical system work?

Three-phase power provides three alternating currents, with three separate electric services. Each leg of alternating current reaches a maximum voltage, only separated by 1/3 of the time in a full cycle. In other words, the power output of a three-phase power remains to be constant, and it never drops into zero.May 20, 2020

What is the formula for 3-phase power?

For 3-phase systems, we use the following equation: kW = (V × I × PF × 1.732) ÷ 1,000. Again, assuming unity PF and solving this equation for “I,” you get: I = 1,000kW ÷ 1.732V.

How many volts is a 3-phase?

Electricity is either connected at 230 or 240 volts (single-phase, which accounts for the majority of domestic situations), or 400 and 415 Volts (three-phase). The latter is better suited to providing for powerful appliances and fixed plant, and is more commonly used by industrial and larger commercial users.

What is a balanced 3 phase system?

A balanced three-phase voltage or current is one in which the size of each phase is the same, and the phase angles of the three phases differ from each other by 120 degrees. A balanced three-phase network is one in which the impedances in the three phases are identical.

Is 240V single-phase or 3 phase?

240V power is used in the US and parts of the world. In the US 120 / 240V 1 Phase 3 Wire is the standard for homes and 240V 3 Phase Open Delta is the standard for small buildings with large loads. In parts of the world 240V Single Phase 2 Wire is the standard for homes.Jun 26, 2016

How many amps is a 3 phase?

If your calculator doesn't have a square root function, use 1.73 as an approximation of the square root of 3. For example, a three phase circuit using 25,000 watts of power and a line voltage of 250 will have a current flow of 25,000/(250 x 1.73), which is equal to 57.80 amperes.Jan 9, 2018

Is 240V single-phase?

Because we only measure across two wires, both 120V and 240V are referred to as single-phase power. (It's rare to find three-phase AC power in residential situations). Neutral and ground are related but serve different roles. The neutral wire is the current return path for 120V circuits.Nov 2, 2016

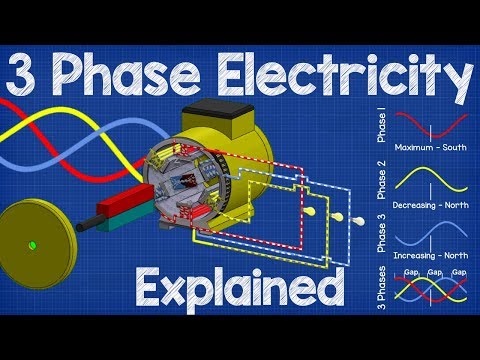

image-How is 3phase distributed?
image-How is 3phase distributed?

Can 220v be 3 phase?

It is NOT possible. The simple reason is that three phase power has at least 3 conductors (wires). A 220 volt lamp has only two points to connect to. If the lamp is connected to two of the wires of a three phase system, it is only using single phase power.


Is 240V single phase or 2 phase?

240VAC Split Phase is produced off a single phase input transformer with center tapped secondary, producing for output, a single phase across the 240V outer terminals and two 120V legs with phases 180 degrees apart.May 18, 2014


What is difference between 3 phase and single phase?

In a single phase power supply, the power is supplied through two wires called Phase and neutral. In three phase power supply, the power is supplied through three wires (four wires if neutral wire is included). The voltage of single phase supply is 230V whereas it is 415V in a three phase supply.Dec 31, 2019


What is three-phase power?What is three-phase power?

Although single-phase power is more prevalent today, three-phase is chosen as the power of choice for many different types of applications. Generators at power stations supply three-phase electricity.


Why does the electric grid use a three phase power distribution system?Why does the electric grid use a three phase power distribution system?

In other words, every one-third of a cycle, one of the waves reaches peak voltage, and the power supplied by the circuit remains consistent. The electric grid uses a three-phase power distribution system because it allows for higher transmission at lower amperage.


What is the advantage of 3 phase over 1 Phase?What is the advantage of 3 phase over 1 Phase?

A three-phase circuit provides greater power density than a one-phase circuit at the same amperage, keeping wiring size and costs lower. In addition, three-phase power makes it easier to balance loads, minimizing harmonic currents and the need for large neutral wires.


What is a three-phase power distribution unit (PDU)?What is a three-phase power distribution unit (PDU)?

But data center operators are keenly aware of the cost, consistency and reliability of electrical power, and that’s driving increased interest in three-phase power distribution units (PDUs). The typical power outlet in the U.S. supplies 60Hz alternating current. Sixty times a second the current flowing through the circuit reverses direction.
