How hot does a DPF get?

The regeneration process occurs by raising the temperature of the DPF to around 1,100°F (600°C) and enough oxygen is provided directly to the DPF.

In general, most regeneration cycles are handled without the driver knowing they are taking place. The regeneration process occurs by raising the temperature of the DPF to around 1,100°F (600°C) and enough oxygen is provided directly to the DPF.

What temp does DPF melt?

Too high a temperature at the DPF will cause the DPF substrate to melt or crack. Regeneration will be terminated at temperatures above 1,470°F (800°C). With too low a temperature, self-regeneration will not fully complete the soot-burning process.

Can DPF cause overheating?

If the DPF warning light is on it is likely that your DPF is severely blocked and this is an urgent problem that could cause your car to overheat and your engine to ignite into flames.Mar 11, 2015

What is the average exhaust temperature of a diesel engine?

Diesel engine exhaust gases vary with speed and load. High loads and high speeds result in the highest temperatures. Generally, temperatures of 500–700°C (932–1293°F) are produced in the exhaust gases from diesel-cycle engines at 100% load to 200–300°C (392–572°F) with no load.

How do you burn soot from a DPF?

Active regeneration: This is a process that your car can initiate in response to a blockage. Your car injects diesel on the exhaust stroke so that it ignites and burns the soot. Forced regeneration: Mechanics can carry out a forced regeneration where they burn the soot off for you.

Can I clean my DPF filter myself?

Another option is to clean it yourself with an additive. With Lindemann's Total Care Diesel you can clean your DPF yourself. This product lowers the combustion temperature of soot, making it easier to burn. It also contains a very high level of active cleaning agents.

Does DPF regeneration smell?

If the active regeneration process occurs during a short journey, and the engine is turned off before it can be completed, your DPF warning light will appear to tell you that the filter is partially blocked. ... Sometimes, a hot and pungent smell can also start coming from your engine as the soot is being burned away.Sep 1, 2015

Can a blocked DPF damage the engine?

Driving the vehicle with a blocked DPF can seriously damage your engine / turbo and it's not uncommon to have to replace a turbo when the warning light has been ignored for extended periods. The ash residue which remains after successful regeneration cannot be removed and will eventually fill the filter.

What is a good DPF pressure?

It should be around 12.6 volts.

How long should I drive to clean DPF?

To make sure that the regeneration takes place, most manufacturers suggest that every few hundred miles, the car is driven for a period of more than 15 minutes at a consistent speed in excess of 40mph. Doing this should clear the filter.May 15, 2018

image-How hot does a DPF get?
image-How hot does a DPF get?

How many revs does it take to clean a DPF?

Aim to keep the revs above 2000rpm for this period. The heat generated will help clean the DPF filter and the cars Regeneration cycle will usually kick in under these circumstances.


What is normal exhaust temperature?

The average temperature range for the exhaust system is between 600 to 930 Fahrenheit. Driving for a longer period or driving the car harder can cause temperatures to rise to 1600 to 1800 Fahrenheit as well.Dec 14, 2020


How do you reduce the exhaust temperature on a diesel engine?

An intake or exhaust throttle, early or late intake valve opening, cylinder deactivation and in some cases, cylinder cut-out are some ways this can be carried out in practice. Intake Throttling. Intake throttling limits the airflow to the engine and decreases the air fuel ratio.

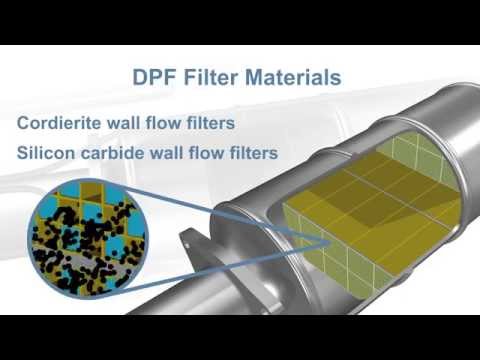

What does a DPF do?

  • A diesel particulate filter (DPF) is a device designed to remove diesel particulate matter or soot from the exhaust gas of a diesel engine.


What is DPF sensor?

  • DPF sensors are used in your diesel car's exhaust system in order to help minimize the amount of soot, which is emitted from your car. That's important not just for your car, but for the environment too.


What is the temperature of diesel fuel?

  • Diesel fuel solidifies, or gels, at temperatures around 15 degrees Fahrenheit (-9 degrees Celsius). The gel point temperature is higher for biodiesel .


What is the function of the temperature sensor on a DPF?What is the function of the temperature sensor on a DPF?

The temperature sensor upstream of DPF monitors exhaust temperature during regeneration. The DPF differential pressure sensor detects the difference between the exhaust pressure upstream and downstream of the Diesel Particulate Filter by means of the exhaust pressure sampling pipes upstream and downstream of the DPF.


What is a DPF and how does it work?What is a DPF and how does it work?

The regeneration process burns off excess soot deposited in the filter, which prevents harmful exhaust emission and the black smoke you commonly see emitted from diesel vehicles when accelerating. Engine manufacturers use DPFs to trap particulate matter in order to meet the EPA 2007 emission standards.


What is the thermal insulation of the DPF and flow channel?What is the thermal insulation of the DPF and flow channel?

It should be noted that the DPF and flow channel are covered with thermal insulation material to minimize the effect of variations at ambient temperature.


How do you measure the pressure in a DPF?How do you measure the pressure in a DPF?

The pressures at the inlet and outlet of the DPF are measured using pressure sensors (amplifier AP-C40, sensor head AP-44, KEYENCE Co.). The pressure difference between the inlet and outlet channels is determined from the measured pressures.
