How fast do capacitors charge?
A capacitor charges to 63% of the supply voltage that is charging it after one time period. After 5 time periods, a capacitor charges up to over 99% of its supply voltage. Therefore, it is safe to say that the time it takes for a capacitor to charge up to the supply voltage is 5 time constants.
How do you calculate the charge on a capacitor?
The stored electric charge in a capacitor, Q (in coulombs, abbreviated C) is equal to the product of the capacitance C (in Farads, abbreviated F) of the capacitor, and the voltage V (in volts, abbreviated V) across its terminals. That is, Q = C٠V. For example, if C = 33μF and V = 20V, then Q = (33٠10^-6)٠(20) = 660μC.
Do capacitors charge at a constant rate?
each capacitor stores the same amount of charge as it would if connected on its own to the same voltage.
What is the charge on a capacitor?
Capacitors do not store charge. Capacitors actually store an imbalance of charge. If one plate of a capacitor has 1 coulomb of charge stored on it, the other plate will have −1 coulomb, making the total charge (added up across both plates) zero.
How long can a capacitor hold a charge?
Some of these circuits could be charged in less than 20 seconds and hold the charge for up to 40 minutes, while having relatively large capacitances of up to 100 milliFarads (mF).Dec 2, 2014
How long will it take a capacitor to charge calculator?

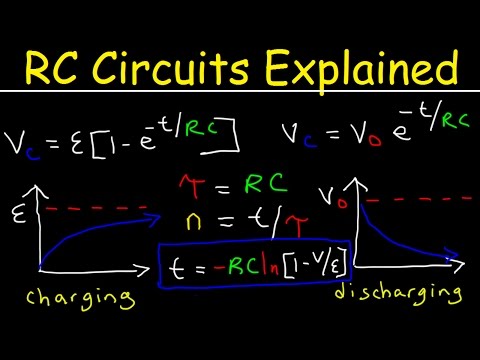

Therefore, it is safe to say that the time it takes for a capacitor to charge up to the supply voltage is 5 time constants. To calculate the time constant of a capacitor, the formula is τ=RC. This value yields the time (in seconds) that it takes a capacitor to charge to 63% of the voltage that is charging it up.
What is the value of 1 microfarad?
1 μF (microfarad, one millionth (10−6) of a farad) = 0.000 001 F = 1000 nF = 1000000 pF. 1 nF (nanofarad, one billionth (10−9) of a farad) = 0.000 000 001 F = 0.001 μF = 1000 pF. 1 pF (picofarad, one trillionth (10−12) of a farad) = 0.000 000 000 001 F = 0.001 nF.
What happens when a capacitor is fully charged?
When a capacitor is fully charged, no current flows in the circuit. This is because the potential difference across the capacitor is equal to the voltage source. (i.e), the charging current drops to zero, such that capacitor voltage = source voltage.
How do you make a capacitor charge slower?
Explanation: When capacitors and resistors are connected together the resistor resists the flow of current that can charge or discharge the capacitor. The larger the resistor , the slower the charge/discharge rate. The larger the capacitor , the slower the charge/discharge rate.Jul 8, 2018
Does a capacitor charge and discharge at the same rate?
It takes time to charge due to some resistance to the current flowing to or from its plates. ... A capacitor doesn't charge or discharge at the same rate as time goes on. The voltage across the capacitor follows a “natural” pattern over time until the capacitor is fully charged or discharged.
Related questions
Related
Can a capacitor create electricity?
Capacitors are a less common (and probably less familiar) alternative. They store energy in an electric field. In either case, the stored energy creates an electric potential. ... That current can be used to power electrical components within a circuit.Jan 18, 2017
Related
How many times can a capacitor be charged?
Electrolytic capacitors in AC applications have an infinite number of recharge cycles. Supercapacitors have 100k to unlimited cycles depending on the technology. Very high energy storage capacitors often have a limit on their charge cycles.
Related
Can you touch a capacitor?
A charged capacitor can be very dangerous, so it's important that you avoid coming into contact with the terminals at all times. Never touch the capacitor anywhere but on the sides of its body. If you touch the two posts, or accidentally connect them with a tool, you could get badly shocked or burned.
Related
How do you calculate the charge on a capacitor?
- To calculate the time constant of a capacitor, the formula is τ=RC. This value yields the time (in seconds) that it takes a capacitor to charge to 63% of the voltage that is charging it up. After 5 time constants, the capacitor will charged to over 99% of the voltage that is supplying.
Related
How to calculate the charge on a capacitor?
- First,determine the capacitance. The capacitance is determined by the design and material used in the capacitor.
- Next,determine the voltage. Determine the voltage moving through the capacitor.
- Finally,calculate the capacitor energy. Calculate the total energy stored in the capacitor using the formula above.
Related
How long does it take to charge a capacitor?
- The capacitor, at full charge, held 9 volts: One time constant, τ=RC=(3KΩ)(1000µF)=3 seconds.5x3=15 seconds. So it takes the capacitor 15 seconds to discharge up to 0 volts.
Related
What does "charge" on capacitor really mean?
- A capacitor is charged when we supply a voltage with current running through the capacitor, in the process the capacitor accumulates charges and is called charged. A charged capacitor can then be discharged by draining the current through it's two terminals or connecting some load through it's terminals.
Related
How much voltage does a capacitor charge to 63%?How much voltage does a capacitor charge to 63%?
The time it takes for a capacitor to charge to 63% of the voltage that is charging it is equal to one time constant. After 2 time constants, the capacitor charges to 86.3% of the supply voltage.
Related
How do you know when a capacitor is fully charged?How do you know when a capacitor is fully charged?
After a five-time constant, the capacitor will be fully charged and the charging current will be zero. Considering the charge on the capacitor as a function of time when it is connected in the circuit, the amount of charge at any time instant can be found.
Related
How do you charge a capacitor with a resistor?How do you charge a capacitor with a resistor?
Charging a Capacitor. When a battery is connected to a series resistor and capacitor, the initial current is high as the battery transports charge from one plate of the capacitor to the other. The charging current asymptotically approaches zero as the capacitor becomes charged up to the battery voltage.
Related
How does the capacitor charge equation affect the charging process?How does the capacitor charge equation affect the charging process?
C affects the charging process in that the greater the capacitance, the more charge a capacitor can hold, thus, the longer it takes to charge up, which leads to a lesser voltage, V C, as in the same time period for a lesser capacitance. These are all the variables explained, which appear in the capacitor charge equation.
