How do you calculate the azimuth of a roof?

Most noteworthy, one must make use of the following formula for the purpose of azimuth calculation to the west: Z = 360 – d, where “Z” is the azimuth one intends to find, and “d” is the distance in the form of degrees from due north.

What are examples of azimuth?

The azimuth is the angle between North, measured clockwise around the observer's horizon, and a celestial body (sun, moon). It determines the direction of the celestial body. For example, a celestial body due North has an azimuth of 0º, one due East 90º, one due South 180º and one due West 270º.

How do you calculate azimuth from coordinates in Excel?

Excel formula =atan2(x_num;y_num) would return the the “m” gradient of y=mx+b function (counterclockwise, from 0→X direction). The azimuth is actually clockwise, from 0→Y direction, so the formula should be =[PI()/2]-[atan2(x_num;y_num)] or simply with X,Y swapped =atan2(y_num;x_num).Jan 31, 2019

How do you find azimuth with a compass?

(d) To measure an azimuth, turn your entire body toward the object and point the compass cover directly at the object. Look down and read the azimuth from beneath the fixed black index line. This method can be used at night.

How do you find azimuth and elevation?

So if the Azimuth for your satellite is, say, 45°, that means your satellite is northeast of you. Elevation is also measured in degrees. A satellite just barely rising over your horizon would be at 0° Elevation, and a satellite directly overhead would be at 90° Elevation (a.k.a., "the zenith").

What is the azimuth of a building?

It is the direction that you are looking at when looking out through the window in the wall from inside the building. This convention is used later in establishing direction of building surfaces relative to other building surfaces. The tilt angle of a vertical wall is 90o.

What is an azimuth tool?

An azimuth compass (or azimuthal compass) is a nautical instrument used to measure the magnetic azimuth, the angle of the arc on the horizon between the direction of the sun or some other celestial object and the magnetic north.

What is the azimuth of my house?

Open up Google Maps, find your PV system

You can find your PV system's azimuth by looking at Google Maps! Simply type in your address, and make sure that the red-arrow indicating north is pointing directly to the top of your screen, and that you have 'satellite' enabled as the map type.

What is the azimuth of South?

An azimuth is the direction measured in degrees clockwise from north on an azimuth circle. An azimuth circle consists of 360 degrees. Ninety degrees corresponds to east, 180 degrees is south, 270 degrees is west, and 360 degrees and 0 degrees mark north.

What is azimuth and bearing?

A bearing is an angle less than 90° within a quadrant defined by the cardinal directions. An azimuth is an angle between 0° and 360° measured clockwise from North. "South 45° East" and "135°" are the same direction expressed as a bearing and as an azimuth.

image-How do you calculate the azimuth of a roof?
image-How do you calculate the azimuth of a roof?

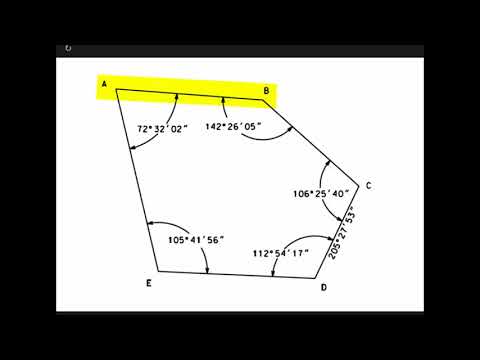

How to convert an azimuth?

  • Plan and prepare. Determine a known azimuth. ...
  • Perform the calculation. Start by writing down the starting azimuth. ...
  • Repeat the calculation for each line of the traverse. That is,add 180° and subtract the interior angle.
  • Check the calculations by using the last interior angle to recalculate the starting azimuth. ...


What is meant by the azimuthal angle?

  • The azimuth is the angle formed between a reference direction (in this example north) and a line from the observer to a point of interest projected on the same plane as the reference direction orthogonal to the zenith.


What does an azimuth do?

  • The azimuth is the angle between the north vector and the perpendicular projection of the star down onto the horizon. Azimuth is usually measured in degrees. The concept is used in many practical applications including navigation, astronomy, engineering, mapping, mining and artillery.


How do you calculate the noon sun angle?

  • Noon Sun Angle Equation Sun Angle = 90 - Zenith Angle The zenith angle is the distance between the subsolar point and the latitude you are “at”. The subsolar point is the latitude where the sun’s rays form a 90o angle at noon.
